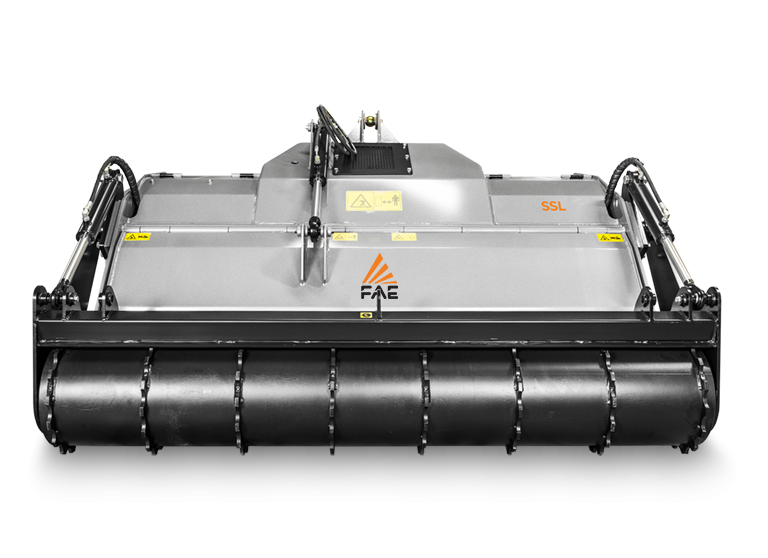

FAE SSL Tractor PTO Tiller

Description

Forestry tiller for PTO tractors with a fixed tooth rotor.

This is the smallest model in FAE’s line of Forestry Tillers. Thanks to its low weight and multiple working width options, the SSL fits a wide range of tractors. The transmission with a side gearbox allows the rotor to spin at a lower speed than a traditional belt-driven mulcher. This makes the transmission much more reliable and ensures a deep, consistent grinding while also lowering tool wear.

Features:

Reinforced hydraulic hood

Helps provide a finer product while being more durable

Dual transmission with side gearbox

Increase power delivery to the rotor

Main Options:

Hydraulically controlled roller

Helps with compaction and working in uneven terrain

Hydraulic top link

Specifications

Models- SSL 150 / 175 SSL/DT 200 / 225 / 250

Engine (hp)- 100-160 / 110-160 / 120-220 / 130-220 / 140-220

PTO (rpm)- 1000

Working Width (in)- 63 / 72 / 82 / 91 /101

Total Width (in)- 76 / 85 / 94 / 104 / 113

Weight (lbs)- 4586 / 4982 / 5776 / 6195 / 6592

Rotor Diameter (in)- 23.6

Max shredding diameter (in)- 12

Max working depth (in)- 12

# of teeth (tooth plus side scraper)- 54+4 / 66+4 / 74+4 / 82+4 / 96+4
